| Place of Origin: | China |
|---|---|
| Brand Name: | Choose Technology |
| Model Number: | 250-17D |
| Minimum Order Quantity: | 1SET |
| Price: | USD100000-20000/1SET |
| Packaging Details: | Suitable for sea transportation packaging |
| Delivery Time: | 120 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5 SETS PER MONTH |
| Application: | Winding Wire, Electric Wire | Function: | Drawing |
|---|---|---|---|
| Inlet Diameter: | Φ2.6-Φ3.5mm | Outlet Diameter: | Φ0.4mm-Φ1.6mm |
| Drawing Speed: | 1800m/min | Voltage: | 220V/380V/415V |
| Condition: | New | Name: | Copper Wire Drawing Machine |
| Quality: | High Efficiency, Best In China, Korea Quality, Europe Quality | Experience: | 20 Years Manufacturing Experience |
| High Light: | Intermediate Wire Drawing Machine,0.4mm Wire Drawing Machine,3.5mm Wire Drawing Machine |
||
1. Technical parameter:
| model | 250-21 | 250-17 | CJ280-9 | 300-9 |
| Inlet wire | Φ2.6-Φ3.5mm | Φ2.6-Φ3.5mm | Φ2.6-Φ3.5mm | Φ2.6-Φ3.5mm |
| Outlet wire | Φ0.4-Φ1.2mm | Φ0.4-Φ1.6mm | Φ1.0-Φ2.2mm | Φ1.0mm-Φ2.76mm |
| Max speed of drawing | 1800m/min | 1800m/min | 800m/min | 1000m/min |
| Drawing block size | Φ250mm | Φ250mm | Φ280mm | Φ300mm |
| Max number of passes | 21 | 17 | 9 | 9 |
2. Brier introduction:
The intermediate copper wire drawing machine finds widespread application across various industries, including electrical and electronics, telecommunications, automotive, and construction. It is utilized in the production of copper wires used for electrical wiring, power transmission, cable manufacturing, magnet wire, and a myriad of other applications where high-quality copper conductors are essential.
3. Key Features:
Precision Drawing Capabilities: The intermediate copper wire drawing machine is equipped with precision dies and rollers that exert controlled pressure on the wire, gradually reducing its diameter to the desired gauge. This ensures consistent wire dimensions and surface smoothness, meeting the stringent quality standards required for various applications.
Multiple Drawing Passes: Depending on the desired wire diameter and quality requirements, the intermediate drawing machine typically incorporates multiple drawing passes. Each pass further reduces the wire diameter incrementally, allowing for gradual refinement and control over the wire's mechanical properties.
Wire Cooling and Lubrication: To mitigate heat generated during the drawing process and minimize friction, the machine features integrated cooling and lubrication systems. These systems help maintain the integrity of the copper wire by preventing overheating and reducing wear on the drawing dies and rollers, thereby prolonging their lifespan.
Adjustable Tension Control: The intermediate drawing machine is equipped with adjustable tension control mechanisms, allowing operators to fine-tune the drawing process according to specific wire characteristics and production requirements. This ensures optimal drawing performance and minimizes the risk of wire breakage or deformation.
Automation and Monitoring: Modern intermediate copper wire drawing machines often incorporate advanced automation and monitoring features, such as electronic sensors and control systems. These technologies enable real-time monitoring of key parameters, such as wire tension, speed, and temperature, facilitating precise control over the drawing process and enhancing overall productivity and efficiency.
4. FAQ:
Dear customers, there are several models for the coppr rod breakdown machine. In order to recommend the suitabe models, we'd like to learn some information:
1. Inlet and outlet wire diameter
2. Whether need online annealer
3. Take up method: Spool bobbin or coiler?
4. Dimension drawing of spool bobbin/wire basket
Best regards

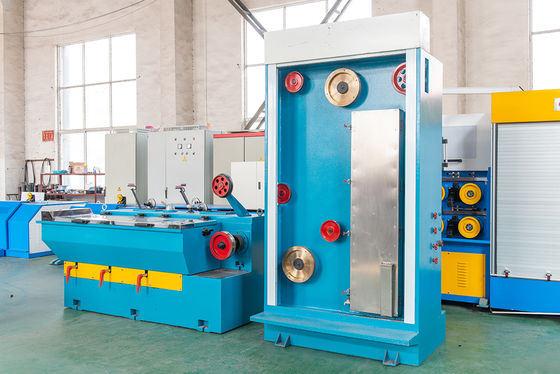

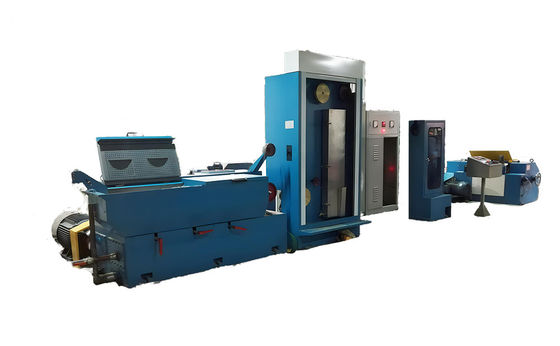

5. Reference photos
