| Place of Origin: | China |
|---|---|
| Brand Name: | Choose Technology |
| Model Number: | DJ630 |
| Minimum Order Quantity: | 1SET |
| Price: | USD10000-15000/1SET |
| Packaging Details: | Suitable for sea transportation packaging |
| Delivery Time: | 60 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 SETS PER MONTH |
| Application: | Twisting Wires And Cables | Control System: | PLC Control |
|---|---|---|---|
| Display: | Touch Screen | Max. Twisting Section: | 10mm² |
| Power Supply: | 380V, 50Hz | Twisting Direction: | Clockwise |
| Twisting Head: | Cantilever Type | Twisting Motor: | AC Motor |
| Twisting Pitch: | Customizable | Twisting Speed: | Adjustable |
| Type: | Single Twisting Machine | Wire Diameter Range: | 0.2-10mm |
| High Light: | 630-1250 cantilever stranding machine,cantilever single stranding machine,wire and cable processing equipment |
||
1. General description:
Used for cable core twisting.
2. Charasterisrics:
This machine adopts Taiwanese technology and improved design and manufacture. It has the characteristics of low noise, low loss, stable performance and simple operation. The stranding pitch can be set steplessly through PLC.
The whole machine adopts cantilever structure, pneumatic and hydraulic brakes, magnetic powder tension take-up, electrical and bearing are imported from Taiwan and Japan, the frame is welded by steel plate, bore milling treatment, high concentric precision, and the processing accessories are quenched, tempered and fine grinding treatment.
2. Technical parameter:
| Dimension of take up | Ф630mm, height 400mm |
| Spool of pay off | Ф400-500mm spool |
| Single wire diameter | Ф1.0-3.0mm |
| Finish size | Max Ф12mm |
| Stranding pitch | 20-300mm |
| Speed | Max 600rpm |
| Main driving motor | 11KW + Inverter |
| Tracking motor | 2.2KW + Inverter |
| Wire arranging motor | 0.75KW + Inverter |
| Paper wrapping |
Center height: 976mm Operation method: horizontal wrapping paper Power: 3HP brake motor Paper wrapping force: 1.2KG double shaft magnetic powder clutch wrapping paper The diameter of the aluminum foil adopts the standard inner hole Φ52 |
3.Main electrical components
| Main driven motor | SIEMENS BEIDE |
| Inverter | VEICHI |
| Electrical components | SHILIN |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
4. FAQ:
Dear customers, there are several models for the twisting machine. In order to recommend the suitabe model, we'd like to learn some information:
1. Bare wire diameter
2. Soft wire or hard wire
3. Quantity of wires to be twisted
4. Area after twisting.
Best regards

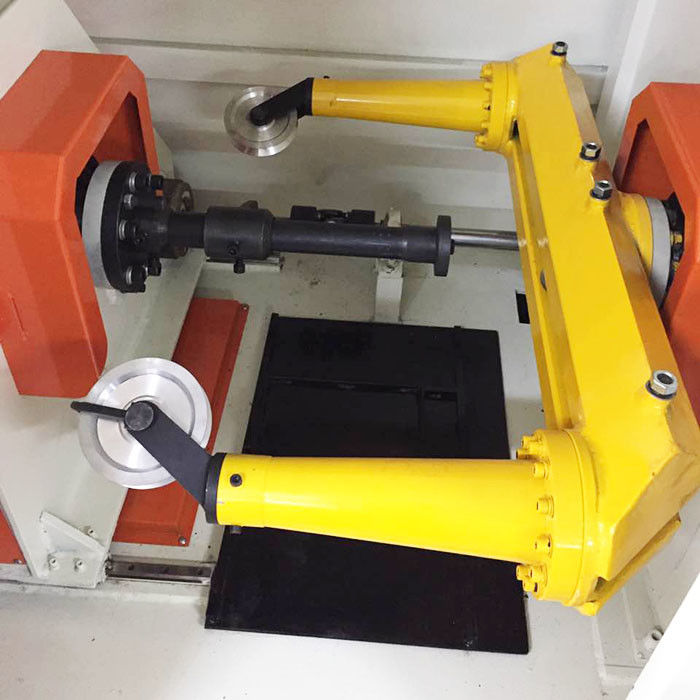

5. Reference photos
