| Place of Origin: | China |
|---|---|
| Brand Name: | Choose Technology |
| Model Number: | D630 |
| Minimum Order Quantity: | 1SET |
| Price: | USD10000-15000/1SET |
| Packaging Details: | Suitable for sea transportation packaging |
| Delivery Time: | 60 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 SETS PER MONTH |
| Application: | Wire And Cable Industry | Number Of Bunching Heads: | 24,36,48,60,96 |
|---|---|---|---|
| Take-Up Bobbin Type: | Motorized | Weight: | 8000kg |
| Take-Up Bobbin Size: | Φ400-Φ630mm | Overall Dimensions: | 5500x2500x2500mm |
| Bunching Direction: | S/Z | Main Motor Power: | 30kW |
| Power Supply: | 380V, 50Hz | Speed: | 1000m/min |
| Model: | HB-1000 | Control System: | PLC |
| Twist Pitch Range: | 5-100mm | Wire Diameter Range: | 0.08-0.5mm |
| High Light: | High speed wire bunching machine,bunching machine copper wire,copper wire bunching machine |
||
1. General description:
Used for >7 bare copper wires and PVC core bunching
2. Charasterisrics:
a. High rotation speed
b. Constant tension from empty bobbin to full bobbin,
c. Good quality for twist wire,
d. Driven by synchronization belt.
e. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Technical parameter:
| Machine body | A3 Steel plate welded structure, Stress relief annealing processed |
| Rotating speed | Stepless speed adjusting,max speed: 1800rpm*2 |
| Stranding | Suitable for more than 7 copper wires bunching |
| Diameter range of copper wire | Φ0.12mm-Φ1.00mm |
| Area after stranding | 0.18-6.0mm2 |
| Bunching direction | Right or left |
| Bunching distance | 11.15-60mm |
| Diameter of taking up spool | Φ630mm |
| Loading weight of copper wire | Max 450kg |
| Wire arrangement | Bearing type wire arranging, arranging width and length is adjustable. |
| Driven motor | 7.5KW motor |
| Noise lever | 80dB |
| Machine dimension | 2900*1500*1650mm |
| Weight | About 3000kg |
3.Main electrical components
| Main driven motor | SIEMENS BEIDE |
| Inverter | VEICHI |
| Electrical components | SHILIN |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
4. FAQ:
Dear customers, there are several models for the bunching machine. In order to recommend the suitabe model, we'd like to learn some information:
1. Bare wire diameter
2. Soft wire or hard wire
3. Quantity of wires to be twisted
4. Area after twisting.
Best regards

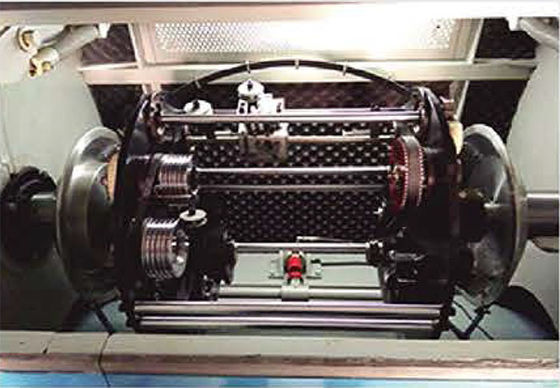

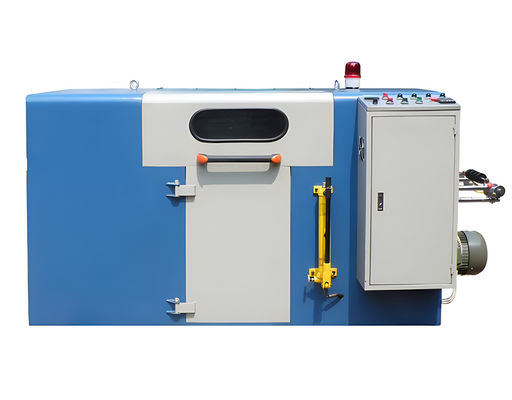

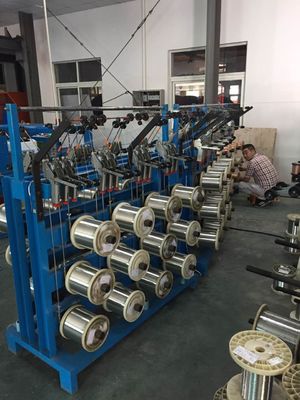

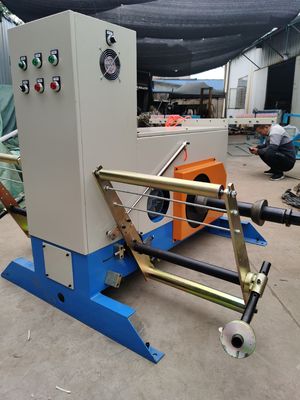

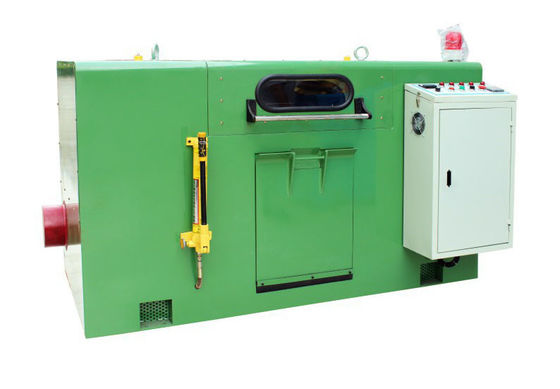

5. Reference photos
