| Place of Origin: | China |
|---|---|
| Brand Name: | Choose Technology |
| Model Number: | DBT21-4 |
| Minimum Order Quantity: | 1SET |
| Price: | USD100000-20000/1SET |
| Packaging Details: | Suitable for sea transportation packaging |
| Delivery Time: | 120 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5 SETS PER MONTH |
| Application: | Winding Wire, Electric Wire | Function: | Drawing |
|---|---|---|---|
| Inlet Diameter: | Max Φ1.8mm | Outlet Diameter: | Φ0.15mm-Φ0.6mm |
| Drawing Speed: | 1500m/min | Voltage: | 220V/380V/415V |
| Condition: | New | Name: | Copper Wire Drawing Machine, Multiwire Drawing Machine |
| Quality: | High Efficiency, Best In China, Korea Quality, Europe Quality | Experience: | 20 Years Manufacturing Experience |
| High Light: | 4 heads multi wire drawing machine,fine copper annealing machine,multi wire drawing machine |
||
This machine is used to draw 4 wires Φ0.15-Φ0.6mm copper wires.
| Inlet wire | 4*Φ1.8mm |
| Outlet wire | 4*(Φ0.15mm-Φ0.6mm) |
| Max speed of drawing | 1500m/min |
| Drawing block size | Φ220mm |
| Max number of passes | 21 |
| Spooling bobbin size | PND630 |
| Main motor power | 75KW |
| Power of motor for spool take up | 15KW |
| Annealing power | 60V, 1000A (DC) |
3. Brier introduction:
3.1 Payoff stand:
Type: Over head
Dimension of Payoff (mm): 300*300*650mm

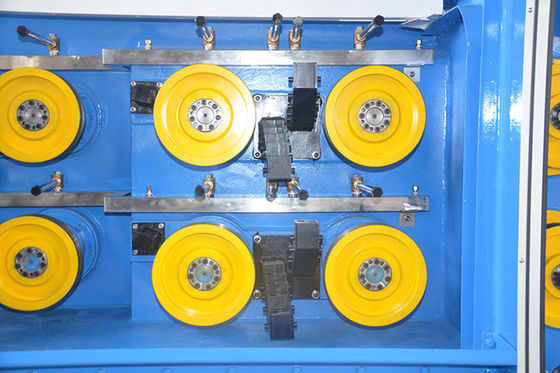

3.2 Main drawing machine:
Type: slip type, 4 wires 21-die copper wire drawing machine
The machine consists of trough for cooling and circulation of drawing emulsion, capstan, and main motor.
Working surface of Wire drawing rings and capstan rings is ceramic coated.
Two clip-and-run switches for die stringing by clip-and-run operation.
The drawing emulsion trough is provided with doors made of stainless steel, which prevent lubricant from overflowing. The machine drives transmission by flat belts.
The drawing blocks and drawing dies are lubricated and cooled by spraying.
3.3 Annealing device
Type: vertical DC annealing, speed tracking automatically
Diameter of annealing inlet wire: 4*(Φ0.15 mm-Φ0.6mm)
Max linear speed of annealing: 25m/s
4pieces-Diameter of annealing nickel-conducting ring: 200mm.
The stretching force of softening conductor is even and stable and reaches the international requirement of the stretching rate.
Annealing is a three-period process: preheating period and annealing period
3.4 Φ630 spool take-up:
Spool size: PND630
Max. take up speed: 25m/s
Take-up motor: 15KW (AC)
90W Belt-type synchronous motor cable, stability and fast response.
Traverse pitch is fixed.
Arm cushion detection, automatic correction coiling, tension can be adjusted according to wire diameter.
Uniaxial Quill nut is fixed spool.
Brake is pneumatic butterfly type.
4. FAQ:
Dear customers, there are several models for the coppr rod breakdown machine. In order to recommend the suitabe models, we'd like to learn some information:
1. Inlet and outlet wire diameter
2. Whether need online annealer
3. Take up method: Spool bobbin or coiler?
4. Dimension drawing of spool bobbin/wire basket
Best regards

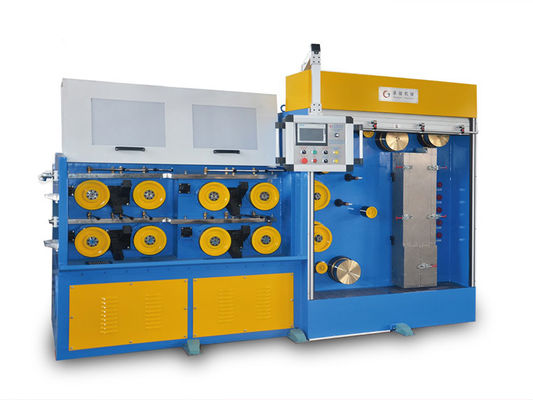

5. Reference photos
