Place of Origin: | China |
---|---|
Brand Name: | Choose Technology |
Model Number: | D70 |
Minimum Order Quantity: | 1SET |
Price: | USD30000-50000/1SET |
Packaging Details: | Suitable for sea transportation packaging |
Delivery Time: | 60 DAYS |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5 SETS PER MONTH |
Application: | Extruding Cables | Cable Making Equipment: | Yes |
---|---|---|---|
Cable Size: | 1.5,2.5 | Conductor Shape: | Circular, Sector, Stranded, Solid |
Control Method: | Touch Screen + PLC | Cooling System: | Water Cooling |
Emperature Control: | Japan RKC | Extrusion Capacity: | Max. 200kg/h |
Function: | Insulation Or Sheathing | Screw Barrel Material: | 38CrMoAlA |
Screw Dia Meter: | 70mm | Name: | Electric Wire Cable Extrusion Production Line |
High Light: | cable extrusion machinery,extruder machine cable,cable extrusion process |
1. General description:
This machine is used to electric cable insulation and sheath layer coating.
2. Technical parameter:
Diameter of wire core | Ф1.0mm-Ф.08mm |
Diameter of finished | Ф1.8mm-10mm, based on hardness of wire |
Extrusion capacity | 200KG/H (Extrusion head open) |
Speed | 300m/min |
Center height of machine | 1000mm |
3.Main electrical components
Motor | SIEMENS BEIDE |
Inverter | VEICHI |
Gearbox | XINHONGYI |
Screw | ZHOUSHAN |
Temperature control | Japan RKC |
Contactor | SHILIN |
Relay | OMRON/DELIXI |
Circuit breaker | DELIXI |
Bearing | NSK/NACHI/ASCHI/KOYO/HARBIN |
PLC | SIEMENS |
Touch screen | SIEMENS |
4. Equipment list
Ф500-630 Double position pay off machine | 1 set |
Ф100 straightening platform | 1 set |
Copper wire pre-heater | 1 set |
Ф70 main extrusion machine | 1 set |
2m pre water tank | 1 set |
8m single layer U shape water tank | 1 set |
Ф500 double wheels water tank tracking machine | 1 set |
12m horizontal wire store frame | 1 set |
Ф630 double position wire take up machine | 1 set |
Main control cabinet (system and temperature system control) | 1 set |
75kg material suction machine | 1 set |
Drying machine | 1 set |
Meter counter | 1 set |
Outside diameter measuring and controlling instrument | 1 set |
5. FAQ:
Dear customers, there are several models for the cable extrusion production line. In order to recommend the suitabe model, we'd like to learn some information:
1. Bare wire diameter
2. Soft wire or hard wire
3. Insulation/Sheath layer thickness
4. Whether with color strips?
Best regards

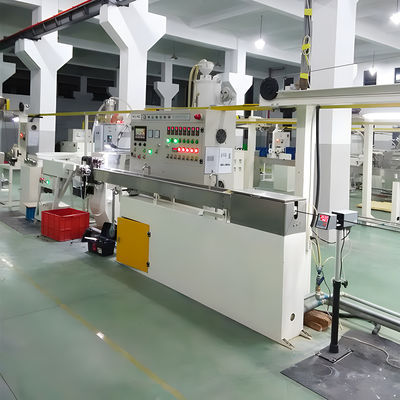

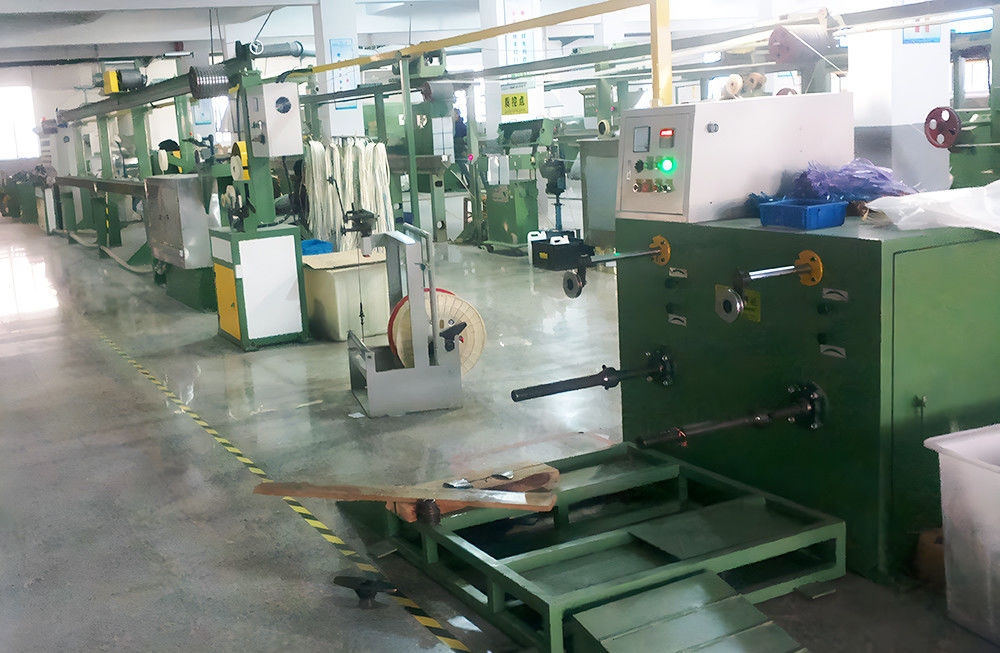

5. Reference photos
